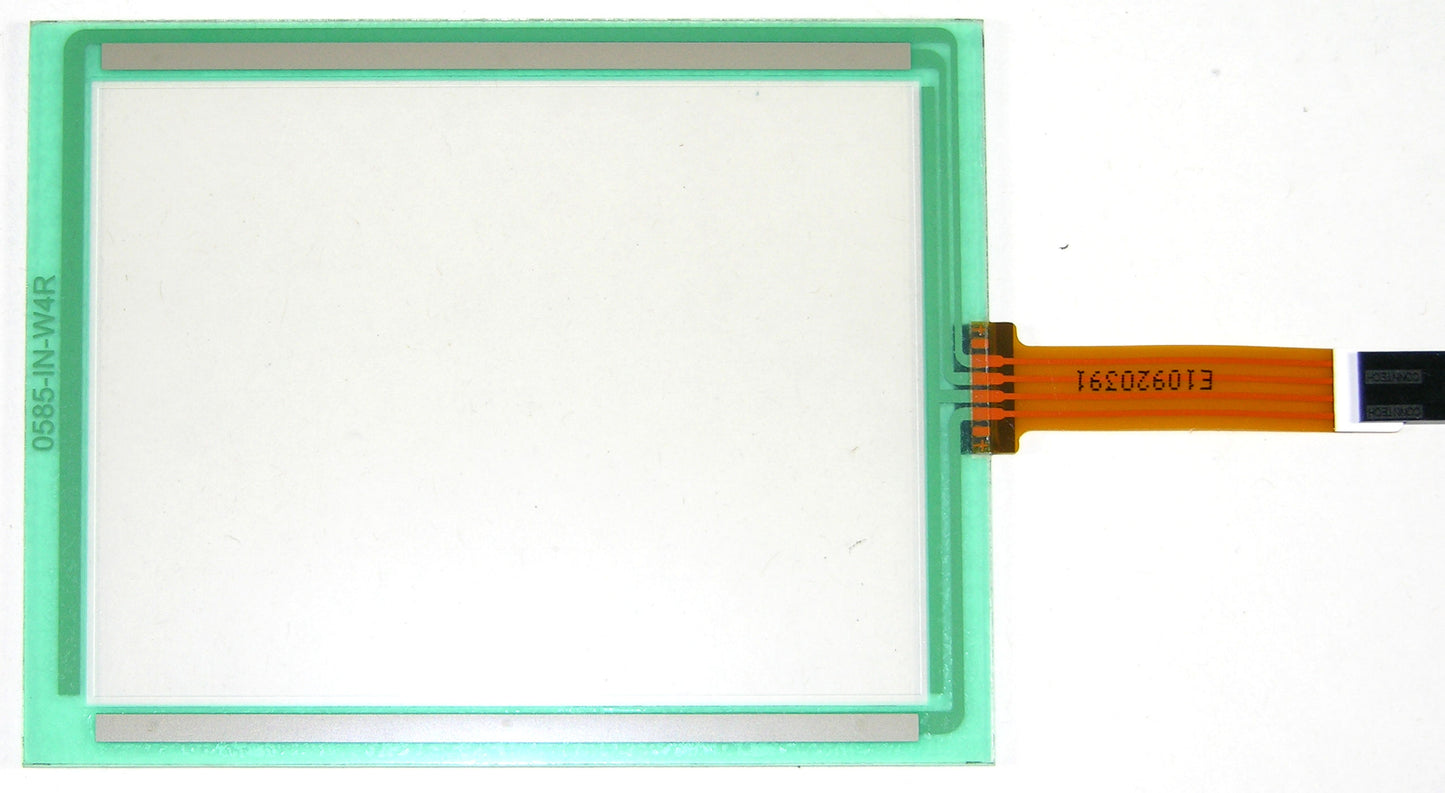

EZ-0585L-W4R, 5.85" Diagonal, 4-Wire Resistive Touch Panel
EZ-0585L-W4R, 5.85" Diagonal, 4-Wire Resistive Touch Panel
Regular price
$36.00 USD
Regular price
Sale price
$36.00 USD
Unit price
per
Couldn't load pickup availability
EZ-0585L-W4R 4:3 Aspect Ratio 4-Wire Resistive Touch Panel
PDF DIMENSIONAL DRAWING
Construction:
2-Layer Design
ITO (indium tin oxide) coated PET (polyethylene) on ITO coated chemically strengthened glass (1.8mm thick)
Features:
Laser bonded tail attachment
Gold Tail Traces
Molex style female connector
Surface Treatments:
Anti-Glare
Clear Hard Coating
Anti-Newton Ring Treatment
Dimensions:
External Dimension: 138.00mm X 108.00 mm (+/- 0.25mm)
Viewable Area: 118mm X 89mm (+/- 0.25mm)
Active Touch Area: 116mm X 87mm (+/- 0.25mm)
Tail Length): 67mm (includes Molex) (+/- 0.25mm)
Tail Connector Pitch): 4-Pin Female Molex Style w/ 2.54mm Pitch (0.100")
PDF DIMENSIONAL DRAWING
Construction:
2-Layer Design
ITO (indium tin oxide) coated PET (polyethylene) on ITO coated chemically strengthened glass (1.8mm thick)
Features:
Laser bonded tail attachment
Gold Tail Traces
Molex style female connector
Surface Treatments:
Anti-Glare
Clear Hard Coating
Anti-Newton Ring Treatment
Dimensions:
External Dimension: 138.00mm X 108.00 mm (+/- 0.25mm)
Viewable Area: 118mm X 89mm (+/- 0.25mm)
Active Touch Area: 116mm X 87mm (+/- 0.25mm)
Tail Length): 67mm (includes Molex) (+/- 0.25mm)
Tail Connector Pitch): 4-Pin Female Molex Style w/ 2.54mm Pitch (0.100")
