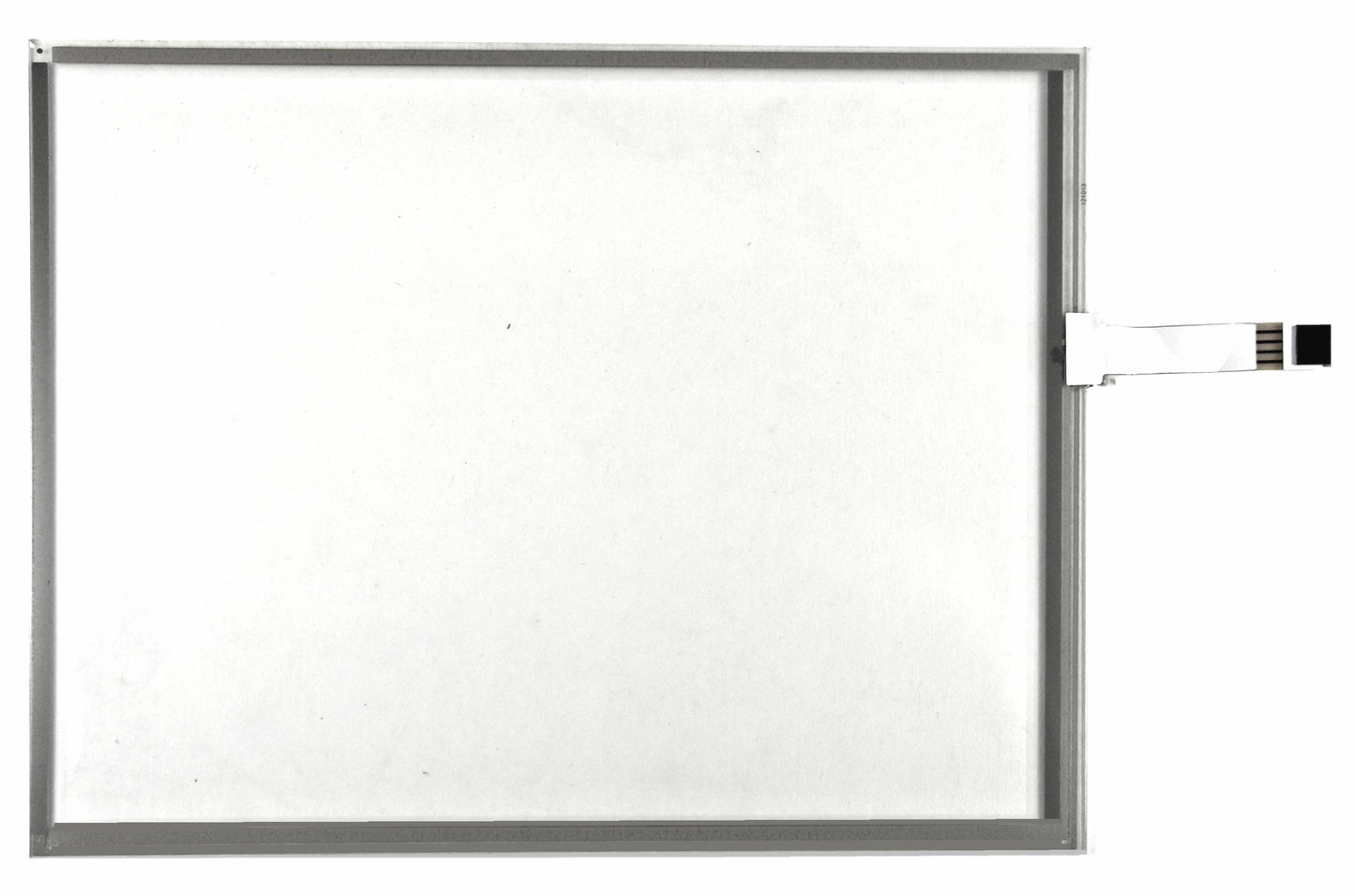

EZ-1210L-W4R, 4-Wire Resistive Touch Screen Panel

EZ-1210L-W4R, 4-Wire Resistive Touch Screen Panel

Regular price $85.00 USD
Regular price Sale price $85.00 USD
Sale Sold out
12.1" Diagonal 4-Wire 4:3 Aspect Ratio Resistive Touch Panel

Construction:
2-Layer Design

ITO (indium tin oxide) coated PET (polyethylene) on ITO coated chemically strengthened glass (1.8mm thick)

Features:
Laser bonded tail attachment
Gold Tail Traces
Molex style female connector

Surface Treatments:
Anti-Glare
Clear Hard Coating

Dimensions:
External Dimension: 267.00mm x 203.00mm X 2.40mm (+/- 0.25mm)
Viewable Dimension: 252.80mm x 191.00mm (+/- 0.25mm)
Active Area): 246.00mm x 184.20mm (+/- 0.25mm)
Tail Length): 67mm (+/- 0.25mm)
Tail Connector Pitch: 2.54mm (0.100")

View full details

Wavelength

The Wavelength touch screen system is fully sealed to P65 and operational from -42 C (-44F) to +70 C (158 F).
it comes standard with tempered glass with customization available.
The controller is built-in to the powder coated steel bezel and the system operates from a single USB cable! (DB9 is available).
