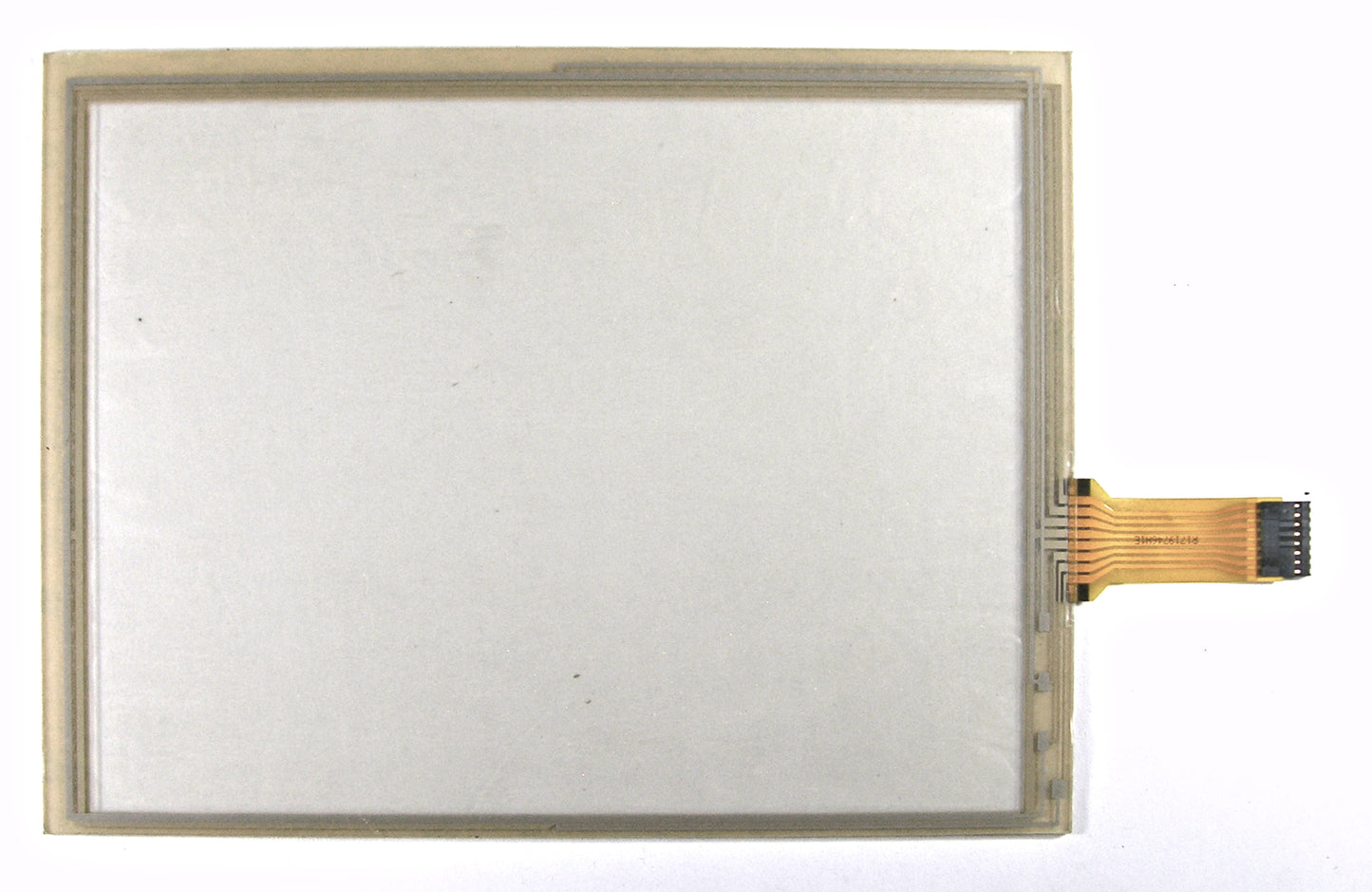

EZ1210L-W8R, 12.1" Diagonal 8-Wire Resistive Touch Screen Panel
EZ1210L-W8R, 12.1" Diagonal 8-Wire Resistive Touch Screen Panel
Regular price
$91.60 USD
Regular price
Sale price
$91.60 USD
Unit price
per
Couldn't load pickup availability
EZ1210L-W8R, 12.1" Diagonal, 4:3 Aspect Ratio, 8-Wire Resistive Touch Panel, Rear 3M Adhesive is Die-Cut and Pre-Applied with Coated Paper Liner.
External Dimensions: 279.4mm X 209.50mm (+/- 0.25mm)
Viewable Dimensions: 252.4mm X 188.90mm (+/- 0.25mm)
Active Area: 249.00mm X 185.00mm (+/- 0.25mm)
Tail: 65mm L. (+/- 0.25mm)
Connector: Molex Style w/ 2.54mm / 0.100" Spacing
Wavelength
The Wavelength touch screen system is fully sealed to P65 and operational from -42 C (-44F) to +70 C (158 F).
it comes standard with tempered glass with customization available.
The controller is built-in to the powder coated steel bezel and the system operates from a single USB cable! (DB9 is available).
