EZ1510L-W5R, 15.1" Diagonal 5-Wire Resistive Touch Screen Panel
EZ1510L-W5R, 15.1" Diagonal 5-Wire Resistive Touch Screen Panel
Regular price
$115.00 USD
Regular price
Sale price
$115.00 USD
Unit price
per
Couldn't load pickup availability

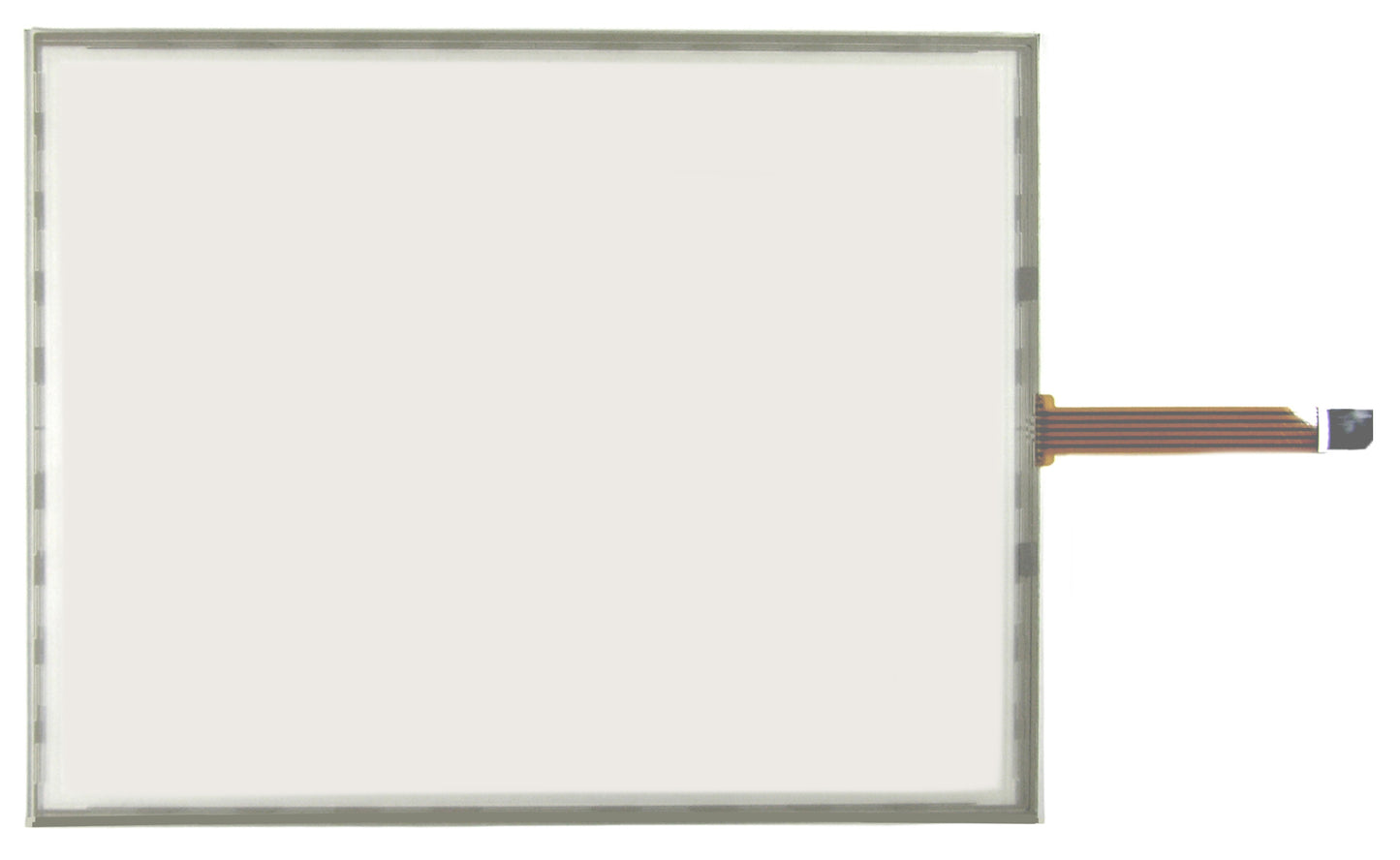

EZ1510L-W5R, 15.10" Diagonal, 4:3 Aspect Ratio, 5-Wire Resistive Touch Panel
External Dimensions: 322.25mm X 247.65mm (+/- 0.25mm)
Viewable Dimensions: 308.00mm X 233.50mm (+/- 0.25mm)
Active Area: 305.000mm X 228.50mm (+/- 0.25mm)
Tail: 106mm
Tail Style: FPC, Molex Style Female Connector w/ 2.54mm /0.100" Spacing
External Dimensions: 322.25mm X 247.65mm (+/- 0.25mm)
Viewable Dimensions: 308.00mm X 233.50mm (+/- 0.25mm)
Active Area: 305.000mm X 228.50mm (+/- 0.25mm)
Tail: 106mm
Tail Style: FPC, Molex Style Female Connector w/ 2.54mm /0.100" Spacing
Wavelength
The Wavelength touch screen system is fully sealed to P65 and operational from -42 C (-44F) to +70 C (158 F).
it comes standard with tempered glass with customization available.
The controller is built-in to the powder coated steel bezel and the system operates from a single USB cable! (DB9 is available).
