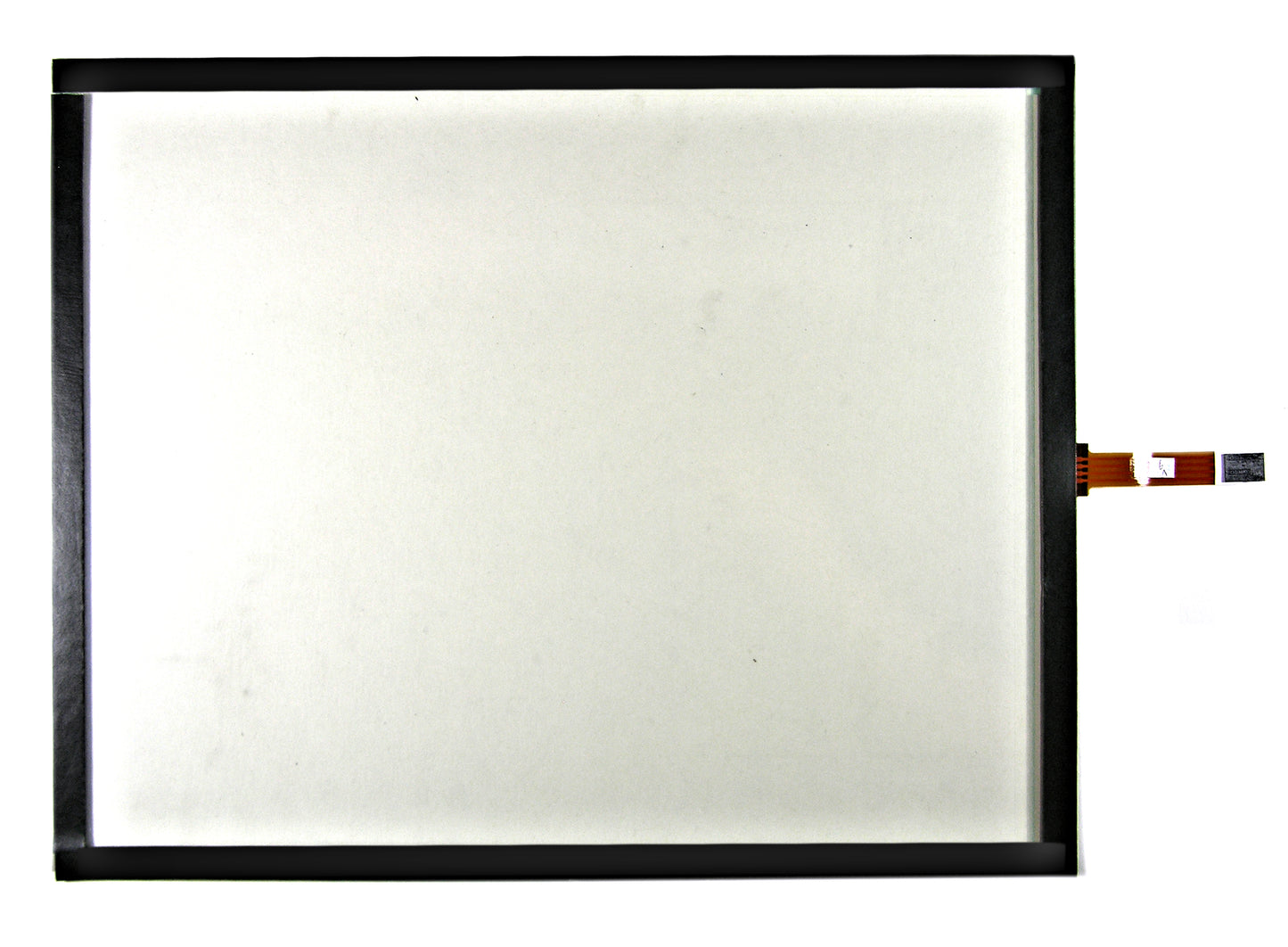

EZ1710L-W4R, 17.1" Diagonal 4-Wire Resistive Touch Screen Panel

EZ1710L-W4R, 17.1" Diagonal 4-Wire Resistive Touch Screen Panel

Regular price $79.00 USD
Regular price Sale price $79.00 USD
Sale Sold out
17.10" 4-Wire Resistive Touch Panel w/ 4:3 Aspect Ratio

Construction:
2-Layer Design

ITO (indium tin oxide) coated PET (polyethylene) on ITO coated chemically strengthened glass (1.8mm thick)

Features:
Laser bonded tail attachment
Gold Tail Traces
Molex style female connector
Front Foam Gasket & Rear Adhesive Installed

Surface Treatments:
Anti-Glare
Clear Hard Coating
Anti-Newton Ring Treatment

Dimensions:
External Dimension: 362.00mm x 278.00mm X 2.5mm (+/- 0.30mm)
Viewable Dimension: 340.00mm x 260.00mm (+/- 0.25mm)
Active Area): 320.00mm x 238.00mm (+/- 0.25mm)
Tail Length): 67mm (+/- 0.25mm)
Tail Connector Pitch): 2.54mm (0.100")


View full details

Wavelength

The Wavelength touch screen system is fully sealed to P65 and operational from -42 C (-44F) to +70 C (158 F).
it comes standard with tempered glass with customization available.
The controller is built-in to the powder coated steel bezel and the system operates from a single USB cable! (DB9 is available).
