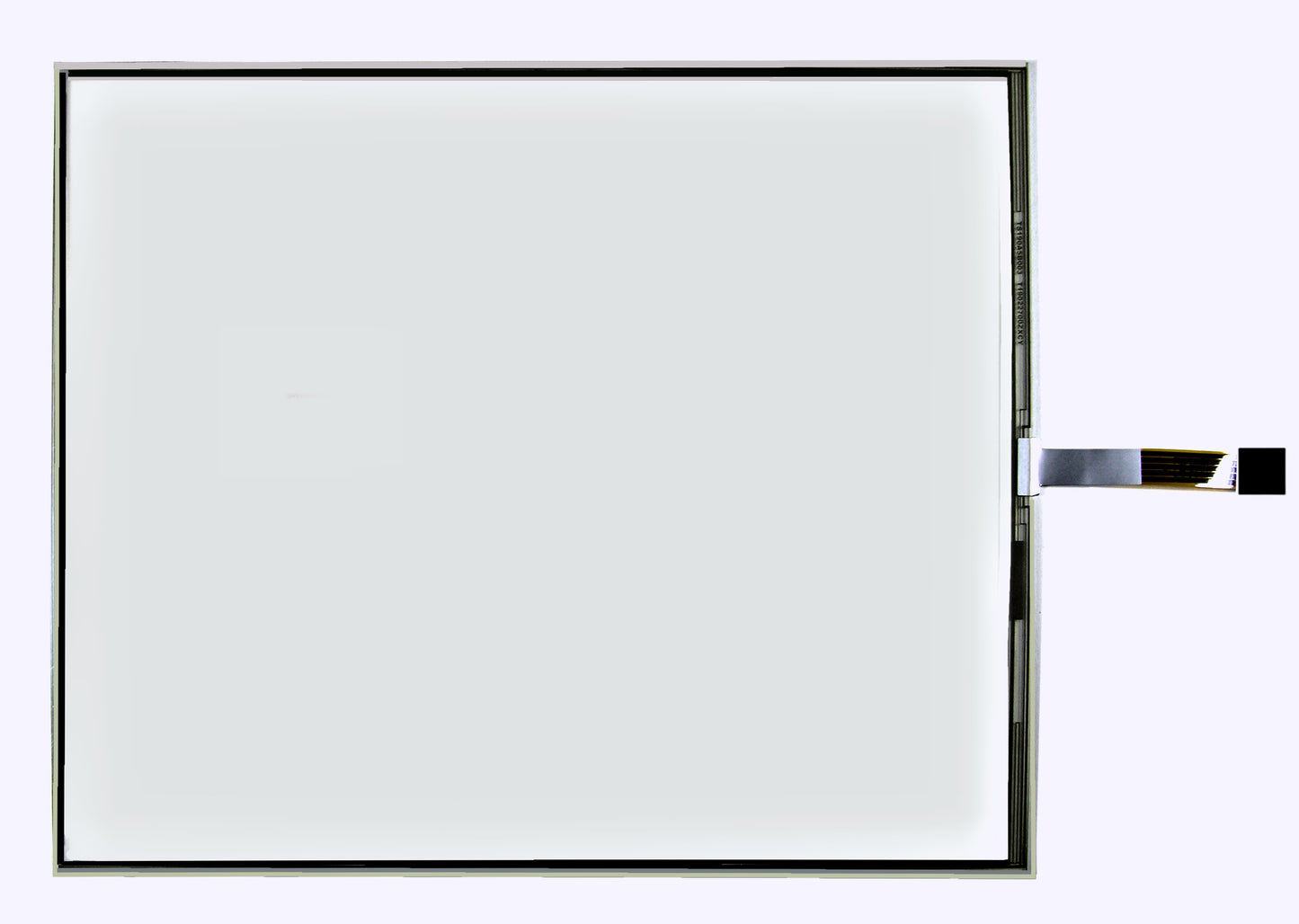

EZ190L-W5R, 19" Diagonal 5-Wire Resistive Touch Screen Panel
EZ190L-W5R, 19" Diagonal 5-Wire Resistive Touch Screen Panel
Couldn't load pickup availability
Dimensional Drawing
Construction:
2-Layer Design
ITO (indium tin oxide) coated PET (polyethylene) on ITO coated chemically strengthened glass (1.8mm thick)
Features:
Laser bonded tail attachment
Gold Tail Traces
Molex style female connector
Surface Treatments:
Anti-Glare
Clear Hard Coating
Anti-Newton Ring Treatment
Dimensions:
External Dimension: 397.00mm x 320.00mm (+/- 0.25mm)
Viewable Dimension: 377.00mm x 303.00mm (+/- 0.25mm)
Active Area): 369.00mm x 294.00mm (+/- 0.25mm)
Tail Length): 67.00mm (+/- 0.25mm)
Tail Connector Pitch): 2.54mm (0.100")
![EZ190L-W5R, 19" Diagonal 5-Wire Resistive Touch Screen Panel](http://ezscreen.com/cdn/shop/products/EZ190L-W5R-080922-F.jpg?v=1660255428&width=1445)
![](http://ezscreen.com/cdn/shop/files/touch-30D-a.gif?v=1656524979&width=1500)
Wavelength
The Wavelength touch screen system is fully sealed to P65 and operational from -42 C (-44F) to +70 C (158 F).
it comes standard with tempered glass with customization available.
The controller is built-in to the powder coated steel bezel and the system operates from a single USB cable! (DB9 is available).
