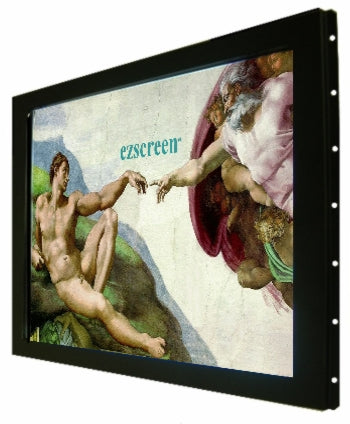

EZLP-190-W5R-USB
EZLP-190-W5R-USB
Regular price
$690.00 USD
Regular price
Sale price
$690.00 USD
Unit price
per
Couldn't load pickup availability
PDF DRAWING
Technical Specifications:
Display Size:19" diagonal measure
Panel Technology: TN (twisted nematic)
Maximum Resolution: 1280 x 1024
Refresh Rate: 60Hz
Horizontal/Vertical Frequency: 30KHz - 80KHz / 55Hz - 75Hz
Dynamic Contrast Ratio: 50000:1
Horizontal/Vertical Viewing Angles: 160�/160�
Brightness: 250 cd/m2
Response Time: 5ms
Pixel Pitch: 0.294mm
Pixel Error Standard:
- B/D: 3
- D/D: 5
- Total: 5
Maximum Colors Supported: 16.7 million
Color Saturation: 72% NTSC
Bit: Six + Hi FRC (high frame rate control)
Signal Connectors: VGA
Power Supply: Internal 100V - 240V @ 50/60Hz
Power Consumption:
- Energy Star on/active: 18.5
- Energy Star sleep: 0.53
- Energy Star off/standby: 0.53
Compliance:
- Energy Star
- TCO'03
- EPEAT Silver
Operating Temperature: 0�C-40�C (32F-110F)
Touch Interface: 5-Wire Resistive with 5VDC USB external controller
Warranty: 1 Year Parts and Labor
Technical Specifications:
Display Size:19" diagonal measure
Panel Technology: TN (twisted nematic)
Maximum Resolution: 1280 x 1024
Refresh Rate: 60Hz
Horizontal/Vertical Frequency: 30KHz - 80KHz / 55Hz - 75Hz
Dynamic Contrast Ratio: 50000:1
Horizontal/Vertical Viewing Angles: 160�/160�
Brightness: 250 cd/m2
Response Time: 5ms
Pixel Pitch: 0.294mm
Pixel Error Standard:
- B/D: 3
- D/D: 5
- Total: 5
Maximum Colors Supported: 16.7 million
Color Saturation: 72% NTSC
Bit: Six + Hi FRC (high frame rate control)
Signal Connectors: VGA
Power Supply: Internal 100V - 240V @ 50/60Hz
Power Consumption:
- Energy Star on/active: 18.5
- Energy Star sleep: 0.53
- Energy Star off/standby: 0.53
Compliance:
- Energy Star
- TCO'03
- EPEAT Silver
Operating Temperature: 0�C-40�C (32F-110F)
Touch Interface: 5-Wire Resistive with 5VDC USB external controller
Warranty: 1 Year Parts and Labor
Wavelength
The Wavelength touch screen system is fully sealed to P65 and operational from -42 C (-44F) to +70 C (158 F).
it comes standard with tempered glass with customization available.
The controller is built-in to the powder coated steel bezel and the system operates from a single USB cable! (DB9 is available).
